Printed Circuit Boards (PCBs) are the unsung heroes of modern electronics. From the smartphone in your pocket to the satellites orbiting Earth, PCBs provide the foundation for virtually every electronic device. But what exactly goes into making these intricate boards? Understanding the PCB manufacturing process is essential for engineers, designers, and anyone involved in electronics systems.
The journey from a design file to a fully functional PCB is a complex, multi-step process that combines precision engineering, advanced materials, and cutting-edge technology. Whether you’re designing your first PCB or optimizing a production line, knowing how PCBs are manufactured can help you make better decisions, improve quality, and reduce costs.
In this article, we’ll take a deep dive into the PCB manufacturing process, breaking it down into clear, actionable steps. We’ll explore everything from design and file preparation to assembly and quality control, highlighting the challenges and innovations that shape this critical industry. By the end, you’ll have a comprehensive understanding of how PCBs go from concept to reality — and why they’re so vital to the world of electronics.

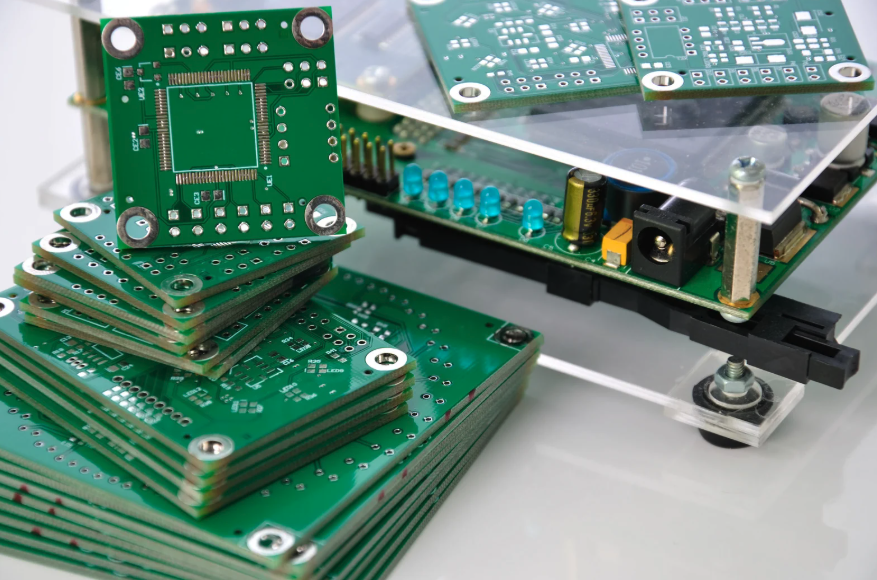

What is a PCB?
At its core, a Printed Circuit Board (PCB) is a flat board made of insulating material, typically fiberglass, with conductive pathways etched or printed onto its surface. These pathways, known as traces, connect electronic components like resistors, capacitors, and integrated circuits, enabling them to work together as a cohesive system.
The Basic Structure of a PCB
A standard PCB consists of several key layers:
Substrate: The base material, usually made of FR-4 fiberglass, provides mechanical support and insulation.
Copper Layers: Thin sheets of copper are laminated onto the substrate and etched to form the conductive traces.
Solder Mask: A protective layer applied over the copper traces to prevent short circuits and oxidation. It’s typically green but can come in other colors.
Silkscreen: The top layer that includes labels, component identifiers, and other markings to assist with assembly and troubleshooting.
PCBs come in various types, each suited to different applications:
- Single-Layer PCBs: The simplest type, with copper traces on one side of the substrate.
- Double-Layer PCBs: Copper traces on both sides, allowing for more complex designs.
- Multilayer PCBs: Multiple layers of copper and substrate, used in advanced electronics like smartphones and servers.
The PCB Manufacturing Process: An Overview
The journey from a design file to a fully functional PCB is a marvel of modern engineering. It’s a multi-step process that combines precision, advanced materials, and cutting-edge technology. Each step is critical, and even a small error can lead to a non-functional board.
Here’s a high-level overview of the key steps involved in the PCB manufacturing process:
- Design and File Preparation: The process begins with a detailed design, which is translated into manufacturing files.
- Printing the Design: The design is transferred onto the PCB substrate using photolithography.
- Layer Stacking and Lamination: For multilayer PCBs, individual layers are stacked and bonded together.
- Drilling and Plating: Holes are drilled for vias and through-holes, then plated with copper to create conductive pathways.
- Solder Mask and Silkscreen Application: Protective layers are added to prevent short circuits and label components.
- Surface Finish Application: A final coating is applied to protect the copper and ensure solderability.
- Electrical Testing and Quality Control: Every PCB is rigorously tested to ensure functionality and reliability.
- PCB Assembly: Components are placed and soldered onto the board, completing the process.
This process may seem straightforward, but it’s anything but simple. Each step requires specialized equipment, skilled technicians, and meticulous attention to detail.
Step 1: Design and File Preparation
The PCB manufacturing process begins long before the first piece of copper is etched. It starts with a concept — a circuit design that engineers translate into a physical layout using specialized software like Altium Designer, KiCad, or Eagle. This step is arguably the most critical, as the design determines the functionality, performance, and manufacturability of the final PCB.
The Role of PCB Design Software
PCB design software allows engineers to create a virtual representation of the board, including:
- Component Placement: Deciding where each resistor, capacitor, and IC will go.
- Trace Routing: Drawing the conductive pathways that connect the components.
- Layer Stackup: Defining the arrangement of copper and insulating layers for multilayer boards.
Once the design is complete, it’s exported into a set of manufacturing files. These files act as the blueprint for the PCB fabrication process.
Key PCB Manufacturing Files
- Gerber Files: These are the most important files, containing layer-by-layer information about the PCB’s copper traces, solder mask, and silkscreen.
- Drill Files: Specify the location, size, and type of holes to be drilled, including vias and through-holes.
- Netlist Files: Define the electrical connections between components, ensuring the board functions as intended.
- Bill of Materials (BOM): Lists all the components required for assembly.
Design for Manufacturability (DFM)
A well-designed PCB isn’t just functional — it’s also manufacturable. Engineers must consider factors like:
- Trace Width and Spacing: Ensuring traces are wide enough to carry current without overheating.
- Component Clearance: Leaving enough space between components for assembly and soldering.
- Panelization: Arranging multiple PCBs on a single panel to optimize production efficiency.
Once the design is finalized and the files are prepared, they’re sent to the PCB manufacturer. This marks the transition from design to fabrication, where the real magic begins.
Step 2: Printing the Design
With the design files in hand, the next step in the PCB manufacturing process is transferring the design onto the PCB substrate. This is where the virtual blueprint becomes a physical reality. The process relies on photolithography, a technique that uses light to transfer patterns onto a surface.
The Photolithography Process
- Copper-Clad Substrate Preparation: The process begins with a flat sheet of insulating material, typically FR-4 fiberglass, coated with a thin layer of copper on one or both sides.
- Applying the Photoresist: A light-sensitive chemical called photoresist is applied to the copper surface. This layer will harden when exposed to UV light.
- Exposing the Design: The PCB design is printed onto a transparent film, which is placed over the photoresist-coated substrate. UV light is then shone through the film, hardening the photoresist in the areas corresponding to the design.
- Developing the Image: The board is washed with a chemical solution that removes the unexposed photoresist, leaving behind a precise pattern of hardened photoresist that matches the design.
Etching the Copper
Once the design is transferred, the next step is etching away the unwanted copper. The board is submerged in an etching solution, typically ferric chloride or ammonium persulfate, which dissolves the exposed copper while leaving the protected areas intact.
- Single-Layer PCBs: For single-layer boards, this step is relatively straightforward.
- Double-Layer and Multilayer PCBs: For boards with multiple copper layers, the process is repeated for each layer, ensuring precise alignment between them.
Cleaning and Inspection
After etching, the remaining photoresist is stripped away, revealing the copper traces that form the circuit. The board is then cleaned and inspected for defects, such as incomplete etching or misaligned patterns.
This step is critical because any errors here can lead to open circuits, short circuits, or other issues that render the PCB unusable. Modern PCB manufacturers use automated optical inspection (AOI) systems to detect and correct defects early in the process.
Step 3: Layer Stacking and Lamination
For multilayer PCBs, the manufacturing process becomes even more intricate. These boards, which can have anywhere from four to over fifty layers, are essential for complex electronics like smartphones, servers, and medical devices. The key to their functionality lies in the precise stacking and bonding of multiple layers of copper and insulating material.
The Layer Stacking Process
- Preparing the Inner Layers: Each inner layer of a multilayer PCB is individually etched with its own circuit pattern, following the same photolithography process described earlier.
- Alignment and Stacking: The etched inner layers are carefully aligned using registration holes or pins to ensure perfect alignment. Prepreg (pre-impregnated fiberglass) sheets are placed between the layers to act as an adhesive.
- Adding the Outer Layers: The top and bottom layers, which will eventually become the outer surfaces of the PCB, are added to the stack.
Lamination: Bonding the Layers Together
Once the layers are stacked, they undergo a lamination process to bond them into a single, solid board. This involves:
- Heat and Pressure: The stack is placed in a laminating press, where heat and pressure are applied to melt the prepreg and fuse the layers together.
- Cooling and Trimming: After lamination, the board is cooled and trimmed to its final size.
The Importance of Precision
The alignment of layers in a multilayer PCB must be precise to within micrometers. Even a slight misalignment can cause issues like signal interference or open circuits. Advanced PCB manufacturers use laser alignment systems and automated optical inspection (AOI) to ensure accuracy.
Step 4: Drilling and Plating
With the layers of a multilayer PCB now bonded together, the next step is to create electrical connections between them. This is achieved through a process called drilling and plating, which forms the pathways that allow signals to travel between layers.
The Drilling Process
- Creating Vias and Through-Holes: Precision drills are used to create holes in the PCB. These holes serve two main purposes:
- Vias: Small holes that connect different layers of the PCB.
- Through-Holes: Larger holes for mounting through-hole components like connectors and capacitors.
- Laser Drilling for Microvias: For high-density interconnect (HDI) PCBs, laser drilling is used to create microvias—tiny holes with diameters as small as 0.1 mm.
The Plating Process
Once the holes are drilled, they need to be made conductive. This is done through a process called electroplating:
- Cleaning and Activation: The board is cleaned to remove debris and then treated with a chemical solution to prepare the hole walls for plating.
- Electroplating: The board is immersed in a copper plating bath, and an electric current is applied. This deposits a thin layer of copper onto the walls of the holes, creating conductive pathways between layers.
- Filling and Capping: In some cases, the vias are filled with conductive or non-conductive material and capped to create a smooth surface for further processing.
Quality Control
After drilling and plating, the board undergoes rigorous inspection to ensure the holes are properly aligned and plated. Automated optical inspection (AOI) and X-ray imaging are commonly used to detect defects like incomplete plating or misaligned holes.
Step 5: Solder Mask and Silkscreen Application
Once the conductive pathways are established, the next step is to protect the PCB and make it easier to assemble and troubleshoot. This is where the solder mask and silkscreen come into play. These layers not only safeguard the board but also provide critical information for assembly and maintenance.
The Solder Mask: Protecting the PCB
The solder mask is a thin, protective layer applied over the copper traces. Its primary functions are:
- Preventing Short Circuits: By covering the copper traces, the solder mask prevents accidental contact between components or solder bridges during assembly.
- Protecting Against Oxidation: The solder mask shields the copper from environmental factors like moisture and dust, which can cause corrosion over time.
- Improving Durability: It adds a layer of insulation, making the PCB more resistant to physical damage.
Application Process:
- Coating: The solder mask, typically a liquid epoxy, is applied to the entire surface of the PCB.
- Exposure: UV light is used to harden the solder mask in the areas where it’s meant to remain. A photomask defines the areas to be exposed.
- Developing: The unexposed solder mask is washed away, leaving behind the hardened layer in the desired areas.
The solder mask is usually green, but it can also come in other colors like blue, red, or black, depending on the manufacturer or customer preference.
The Silkscreen: Labeling the PCB
The silkscreen is the topmost layer of the PCB and is used for labeling. It provides essential information for assembly, testing, and troubleshooting, such as:
- Component Identifiers: Labels like “R1” for resistors or “C2” for capacitors.
- Polarity Markings: Indicators for diodes, capacitors, and other polarized components.
- Test Points: Labels for points where measurements can be taken during testing.
Why These Layers Matter
The solder mask and silkscreen may seem like minor details, but they play a crucial role in the functionality and usability of the PCB. Without them, assembling and maintaining electronic devices would be far more challenging and error-prone.
Step 6: Surface Finish Application
The final step in the PCB fabrication process is applying a surface finish to the exposed copper areas. This layer serves two critical purposes: protecting the copper from oxidation and ensuring reliable solderability during assembly. The choice of surface finish can significantly impact the performance, durability, and cost of the PCB.
Common Types of Surface Finishes in PCB Manufacturing
HASL (Hot Air Solder Leveling):
- Process: The PCB is dipped into molten solder, and excess solder is blown off using hot air.
- Pros: Cost-effective, widely available, and provides a thick, durable coating.
- Cons: Not ideal for fine-pitch components due to uneven surfaces.
ENIG (Electroless Nickel Immersion Gold):
- Process: A layer of nickel is deposited onto the copper, followed by a thin layer of gold.
- Pros: Flat surface, excellent for fine-pitch components, and provides good oxidation resistance.
- Cons: More expensive than HASL and prone to “black pad” defects if not applied correctly.
OSP (Organic Solderability Preservative):
- Process: A thin, organic coating is applied to the copper to prevent oxidation.
- Pros: Environmentally friendly, cost-effective, and easy to apply.
- Cons: Limited shelf life and less durable than other finishes.
Immersion Silver:
- Process: A thin layer of silver is deposited onto the copper.
- Pros: Good solderability, flat surface, and suitable for high-frequency applications.
- Cons: Prone to tarnishing and requires careful handling.
Immersion Tin:
- Process: A thin layer of tin is deposited onto the copper.
- Pros: Flat surface, good solderability, and cost-effective.
- Cons: Prone to whisker growth and limited shelf life.
Choosing the Right Surface Finish
The choice of surface finish depends on factors like:
- Component Type: Fine-pitch components require flat finishes like ENIG or immersion silver.
- Environmental Conditions: Harsh environments may require more durable finishes like HASL or ENIG.
- Cost: Budget constraints may favor OSP or HASL.
Quality Control
After the surface finish is applied, the PCB undergoes another round of inspection to ensure the coating is uniform and free of defects. Automated optical inspection (AOI) and X-ray imaging are commonly used for this purpose.
Step 7: Electrical Testing and Quality Control
After the PCB is fully fabricated, it’s time to ensure it works as intended. Electrical testing and quality control are the final steps in the manufacturing process, designed to catch any defects or issues before the board reaches the assembly stage.
Electrical Testing: Ensuring Functionality
Electrical testing verifies that the PCB’s conductive pathways are intact and that there are no short circuits or open connections. Two common methods are used:
Flying Probe Testing:
- How It Works: Robotic probes move across the PCB, making contact with test points to measure electrical continuity.
- Pros: Flexible, cost-effective for small batches, and doesn’t require custom fixtures.
- Cons: Slower than bed-of-nails testing for large-scale production.
Bed-of-Nails Testing:
- How It Works: A custom fixture with spring-loaded pins (the “bed of nails”) is pressed onto the PCB to test multiple points simultaneously.
- Pros: Fast and efficient for high-volume production.
- Cons: Requires custom fixtures, making it less cost-effective for small batches.
Automated Optical Inspection (AOI)
AOI systems use high-resolution cameras to scan the PCB for defects like:
- Missing or Misaligned Components: Ensuring all parts are correctly placed.
- Solder Mask Defects: Checking for cracks, bubbles, or incomplete coverage.
- Trace Damage: Identifying scratches, cuts, or breaks in the copper traces.
AOI is particularly useful for detecting surface-level issues that electrical testing might miss.
X-Ray Inspection
For multilayer PCBs or boards with hidden connections (like ball grid arrays), X-ray inspection is used to examine internal layers and solder joints. This non-destructive method can reveal:
- Voiding in Solder Joints: Air pockets that can weaken connections.
- Misaligned Vias: Ensuring interlayer connections are properly aligned.
- Defects in Hidden Layers: Identifying issues that aren’t visible on the surface.
Quality Control: The Final Check
Before the PCB is cleared for assembly, it undergoes a final quality control check. This includes:
- Visual Inspection: Technicians manually inspect the board for any obvious defects.
- Functional Testing: Simulating real-world operating conditions to ensure the board performs as expected.
- Documentation: Recording test results and inspection data for traceability and accountability.
Why Testing Matters
A single defective PCB can cause significant problems downstream, from assembly delays to product failures in the field. Rigorous testing and quality control ensure that every board meets the highest standards of performance and reliability.
Step 8: PCB Assembly
The final step in the PCB manufacturing process is assembly, where electronic components are placed and soldered onto the board to create a fully functional circuit. This stage transforms the bare PCB into a ready-to-use electronic device, whether it’s a simple LED light or a complex smartphone motherboard.
The PCB Assembly Process
Solder Paste Application:
- A stencil is placed over the PCB, and solder paste (a mixture of tiny solder particles and flux) is applied to the pads where components will be placed.
- This step is typically done using a solder paste printer, which ensures precise and even application.
Component Placement:
- Components are placed onto the solder paste-covered pads using pick-and-place machines. These machines use vacuum nozzles to pick up components from reels or trays and place them with micrometer precision.
- For through-hole components, manual or automated insertion machines are used.
Reflow Soldering:
- The PCB is passed through a reflow oven, where it is heated to melt the solder paste, creating strong electrical and mechanical connections between the components and the board.
- The oven follows a carefully controlled temperature profile to prevent defects like solder bridges or cold joints.
Inspection and Testing:
- After soldering, the assembled PCB undergoes inspection to ensure all components are correctly placed and soldered. Techniques like automated optical inspection (AOI) and X-ray inspection are commonly used.
- Functional testing is also performed to verify that the board operates as intended.
Conformal Coating (Optional):
- For PCBs used in harsh environments, a protective conformal coating may be applied to shield the board from moisture, dust, and chemicals.
Turnkey Assembly Services
Many PCB manufacturers, especially in the USA, offer turnkey assembly services. This means they handle everything from component sourcing to final testing, providing a one-stop solution for customers. Turnkey services are particularly beneficial for companies looking to streamline production and reduce lead times.
